One of the world's leading manufacturers of Transporters and Manipulators

Mectool Sweden AB was founded in 1992 by the Brodin family. The company offers tailored solutions for material handling within all types of industry.

Models of our transporters

Pneumatic transporters

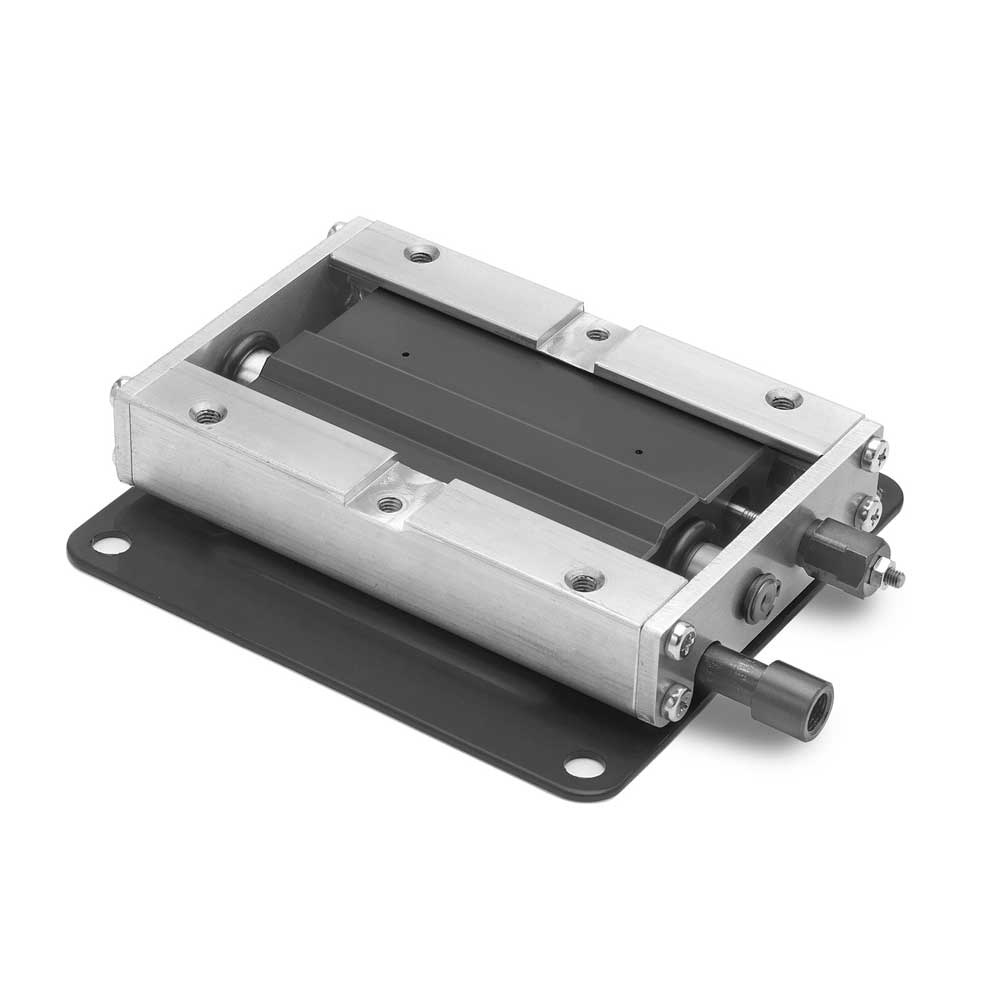

Transporter TP3

Max Load Capacity: 3 kg
Max Tray Weight: 1,5 kg
Stroke Length: 23 mm
Feed Rate: ca 8-10 m/min
Air Pressure: 4-4,5 bar
Air Consumption: 5 l/min
Max Incline of Tray: 8°
Sound Level: 56 dB (A)
Weight: 1,5 kg

Manual STEP-file

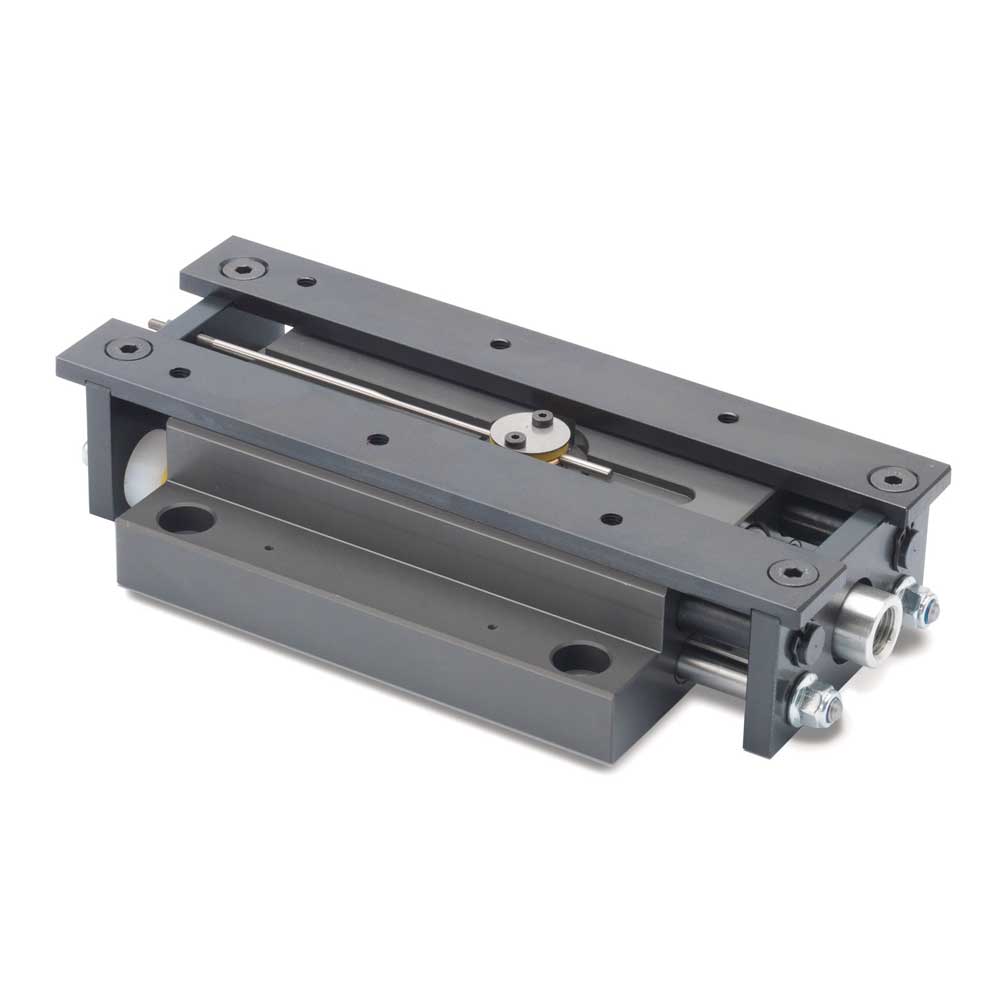

Transporter TP10

Max Load Capacity: 10 kg
Max Tray Weight: 3 kg
Stroke Length: 23 mm
Feed Rate: ca 8-10 m/min
Air Pressure: 4-4,5 bar
Air Consumption: 11 l/min
Max Incline of Tray: 8°
Sound Level: 60 dB (A)
Weight: 3 kg

Manual STEP-file

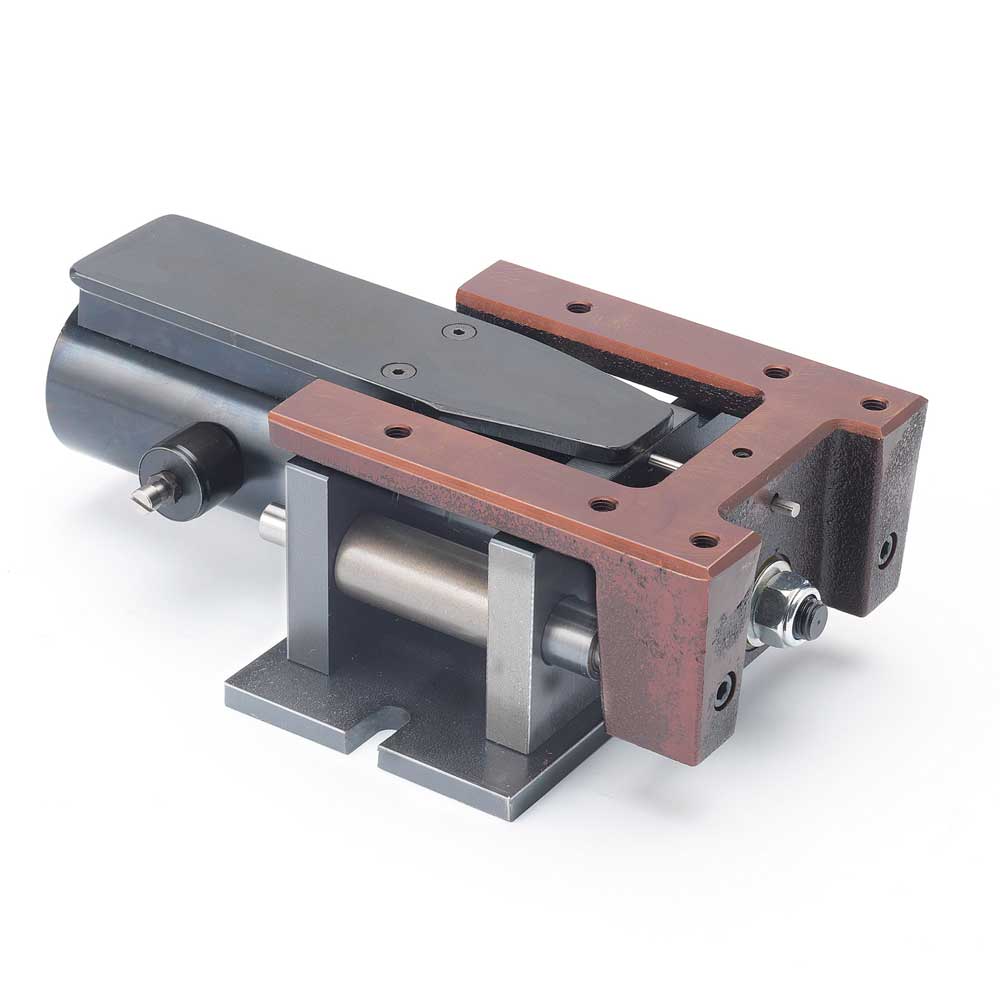

Transporter TP40

Max Load Capacity: 40 kg
Max Tray Weight: 15 kg
Stroke Length: 27 mm
Feed Rate: ca 8-10 m/min
Air Pressure: 4-4,5 bar
Air Consumption: 31 l/min
Max Incline of Tray: 8°
Sound Level: 70 dB (A)
Weight: 8,5 kg

Manual STEP-file

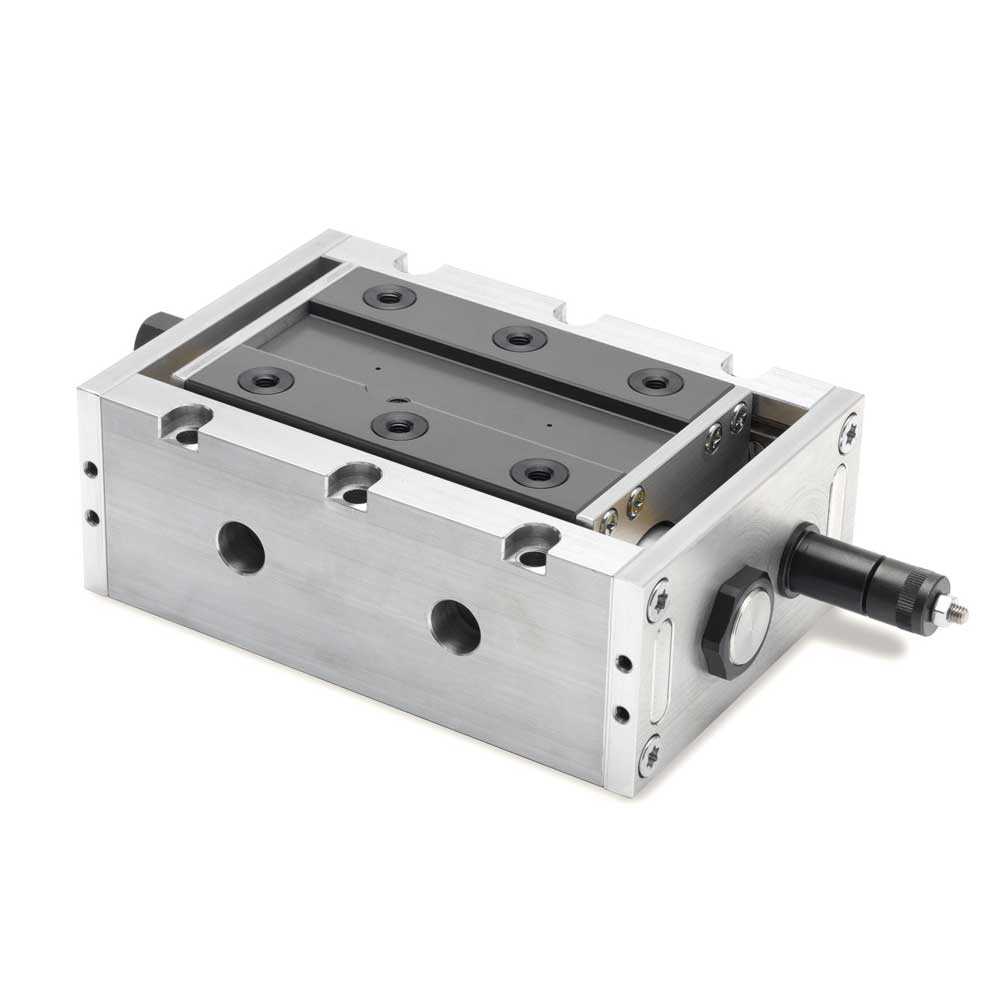

Transporter TP70

Max Load Capacity: 70 kg
Max Tray Weight: 50 kg
Stroke Length: 27 mm
Feed Rate: ca 8-10 m/min
Air Pressure: 4-4,5 bar
Air Consumption: 44 l/min
Max Incline of Tray: 8°
Sound Level: 69 dB (A)
Weight: 6 kg

Manual STEP-file

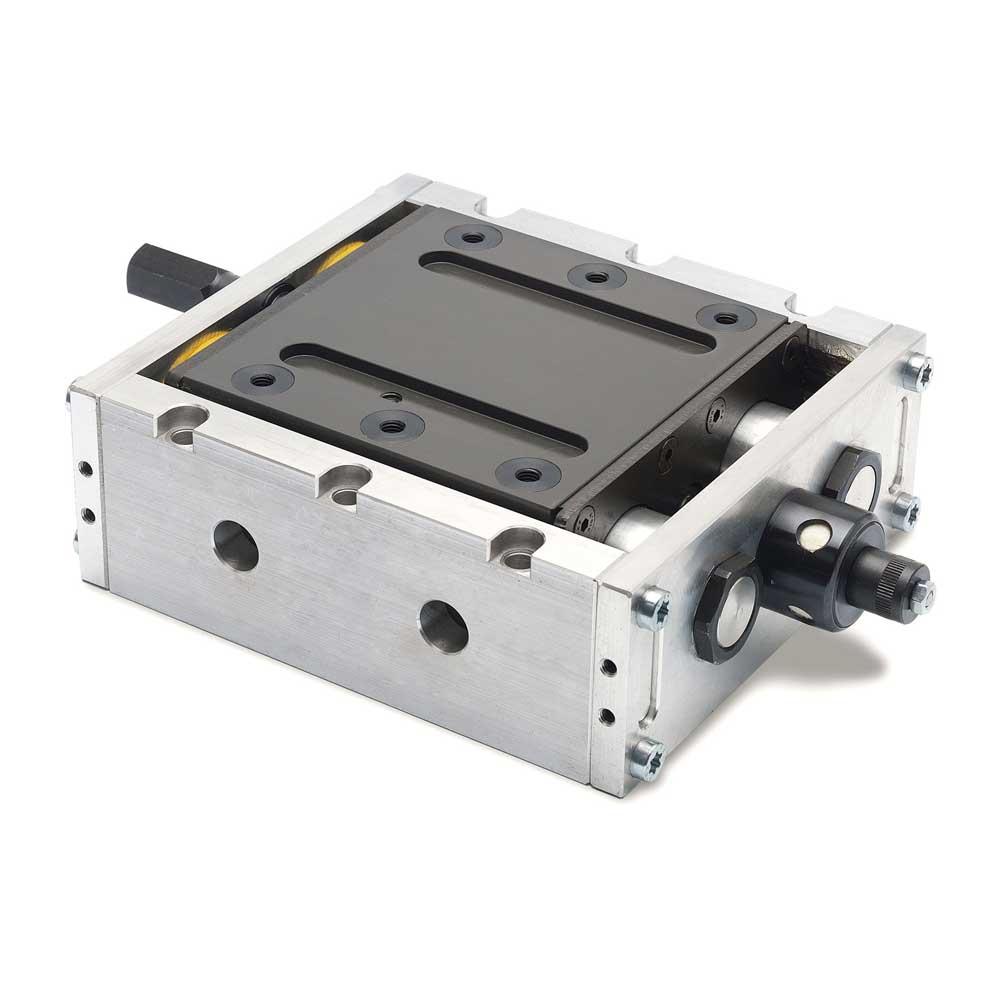

Transporter TP140

Max Load Capacity: 140 kg
Max Tray Weight: 100 kg
Stroke Length: 27 mm
Feed Rate: ca 8-10 m/min
Air Pressure: 4-4,5 bar
Air Consumption: 42 l/min
Max Incline of Tray: 8°
Sound Level: 62 dB (A)
Weight: 8,5 kg

Manual STEP-file

Electric transporters

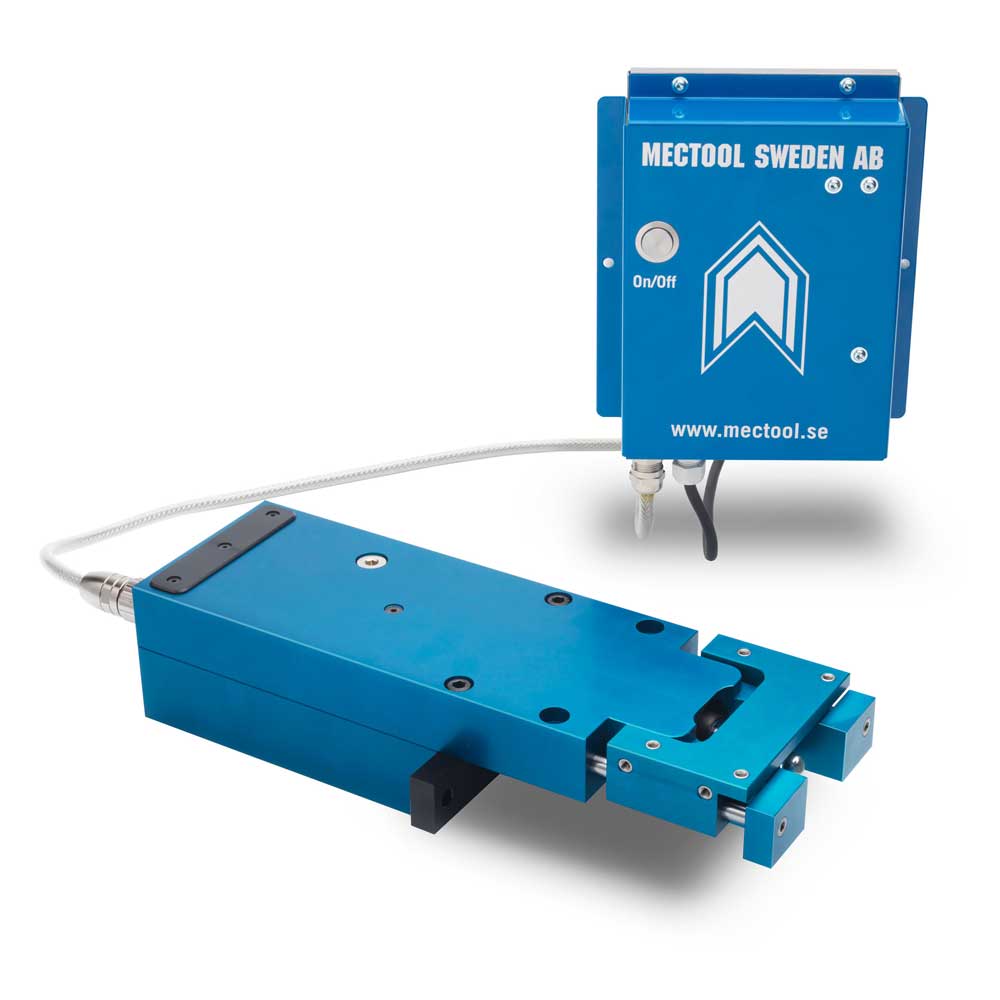

Transporter TPE-15/19

Max Load Capacity: 15 kg
Max Tray Weight 5 kg
Stroke Length: 19 mm
Feed Rate: 4-8 m/min
Sound Level: 55 dB (A)
Motor Effect: 0,1 kW
Electrical Connection: 110-240 V
Weight: 6 kg

Manual STEP-file

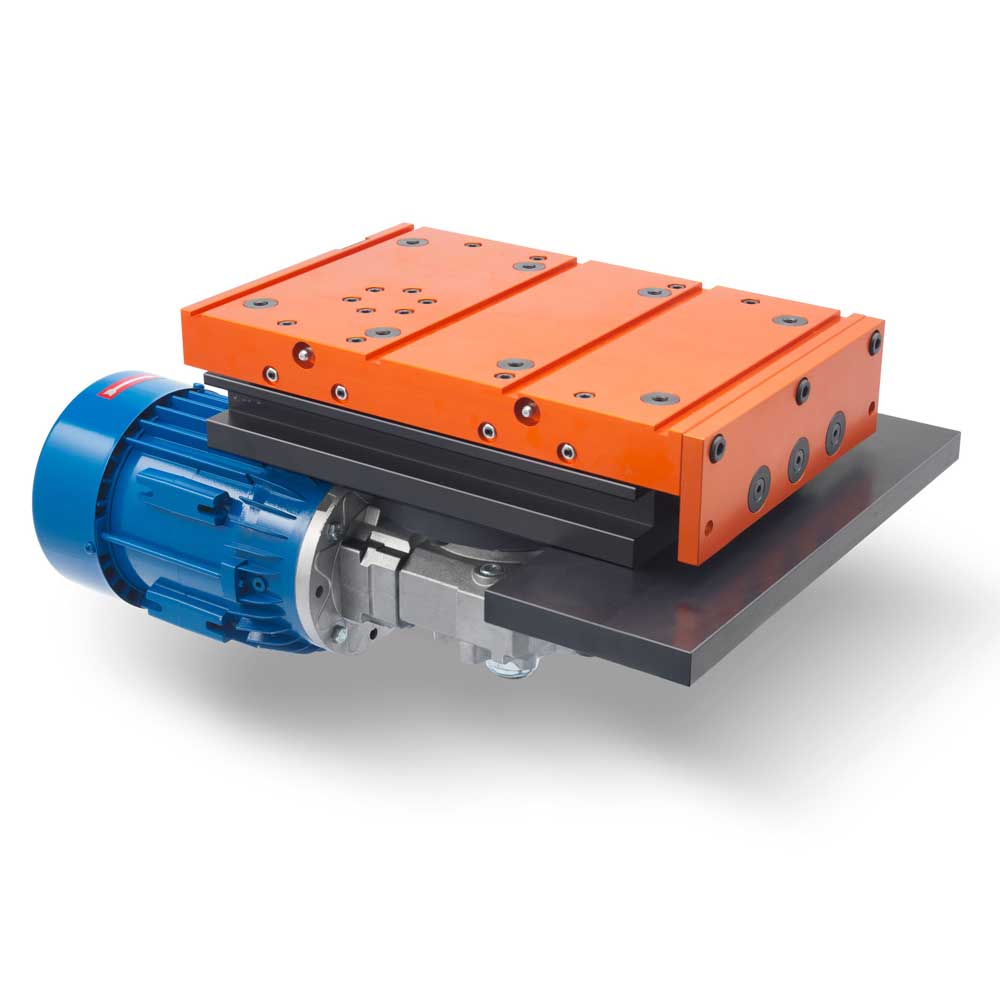

Transporter TPE100

Max Load Capacity: 100 kg
Max Tray Weight 35 kg
Stroke Length: 16 mm
Feed Rate: 8-10 m/min
Sound Level: 62 dB (A)
Initiator: Yes
Motor Effect: 0,5 kW
Electrical Connection: 380-415V 50-60Hz alt. 110-220V
Weight: 31 kg

Manual STEP-file
